Finite
Element Features
FS2000 is a complete finite system offering 3-D finite element
modeling in an interactive graphical environment. The range of
line, surface and solid elements enable any type of structural
system to be modeled. All 3-D elements e.g. beams, shells and
solids can be connected within a model with full compatibility.
FS2000 has an interface module that can convert FE meshes generated
by mesh generation software package GID.
Plasticity - Model includes ideal and stress strain
usng bi-linear/multi-linear/Ramberg-Osgood relationships.
Element
Library
-
Beam elements
-
Pipe elements
- Bend (curved
beams) elements
-
Springs
- Coupling (Node to Node - Node to Ground)
- Pulley elements
-
Contact (Node to Surface)
-
2D Plane Stress/Plain Strain
-
Axisymmetric Solid
-
Membrane Shell
-
Thin Shell (Kirchoff - DK2)
-
Thick Shell (Mindlin)
- Membrane
Solution Options - Solid Full/Selective Integration, QM6
or RDOF(Allman/ANDES)
- 3-D Solids
- Isoparametric - Linear and Parabolic
|
|
Loading
-
Nodal (forces & prescribed displacements)
-
Gravitational
-
Distributed edge and face pressure
- Heat Transfer
-
Thermal
Output
-
Displacement and Stress at elements and nodes
-

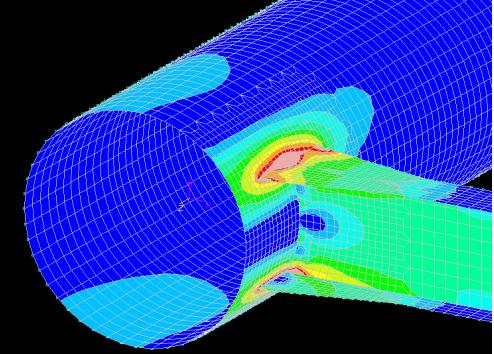

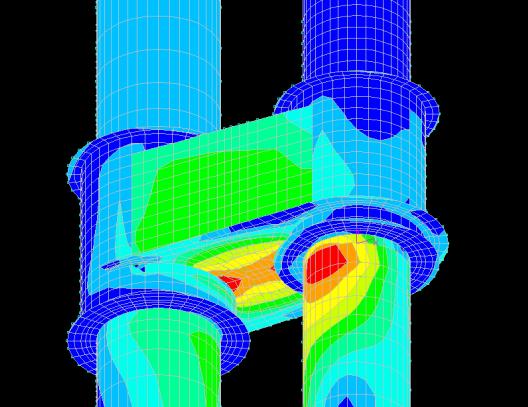

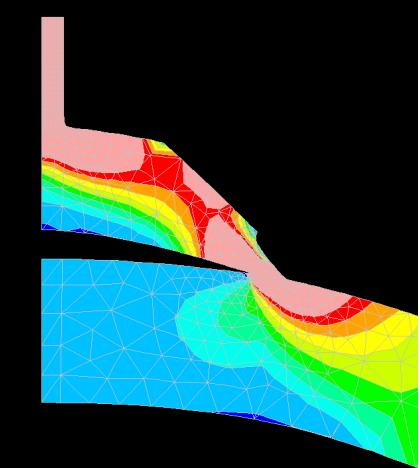

Stress and displacement contour plots
-
Component Stresses
-

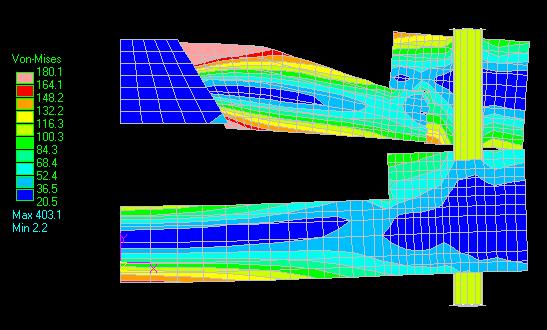

Von-Mises
-
Principle
-
Stress intensity
-
Averaged or unaveraged stresses
-
Stress linearisation for pressure vessel design
-
Group attribute controlled averaging process
|
 |
 |
 |
