Buckling Analysis

FS2000 is capable of performing:

  • Linear Buckling Analysis (Eigen Buckling) - Core Module

  • Non-Linear Buckling (FS-DyNoFlex) -Elasto/Plastic

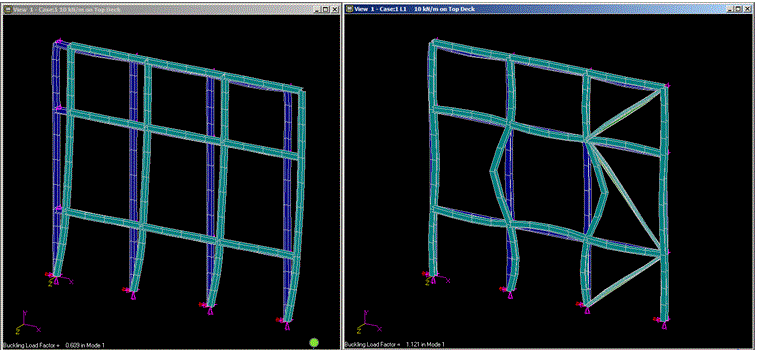

Eigen Buckling Modes

The buckling mode shapes obtained form the Linear buckling can be used to define the initial imperfections for non-linear analysis.

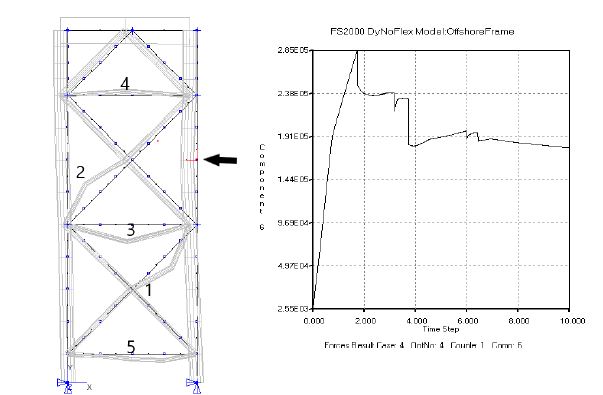

Ship Impact Type Pushover (Dented Tubular Element)  Elasto/Plastic Collapse

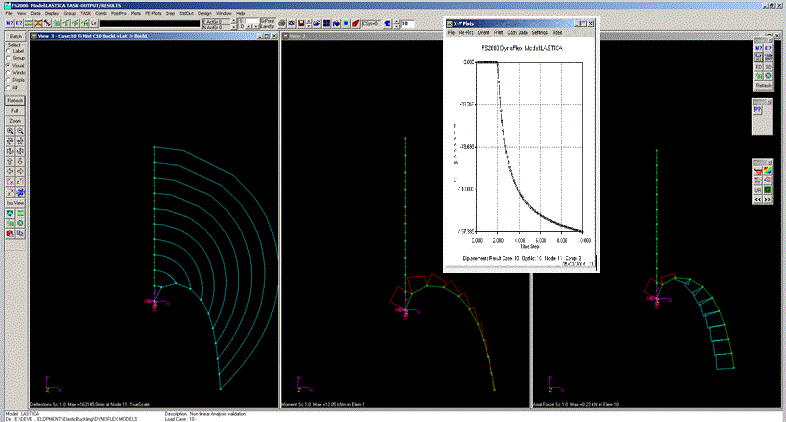

DyNoFlex Column Buckling (Large Displacement)
